The stiffness of the bolt is only 13 to 15 that of the joint. The behavior and life of the joint depends on how tightly the bolts clamp and how long they can maintain their preload.

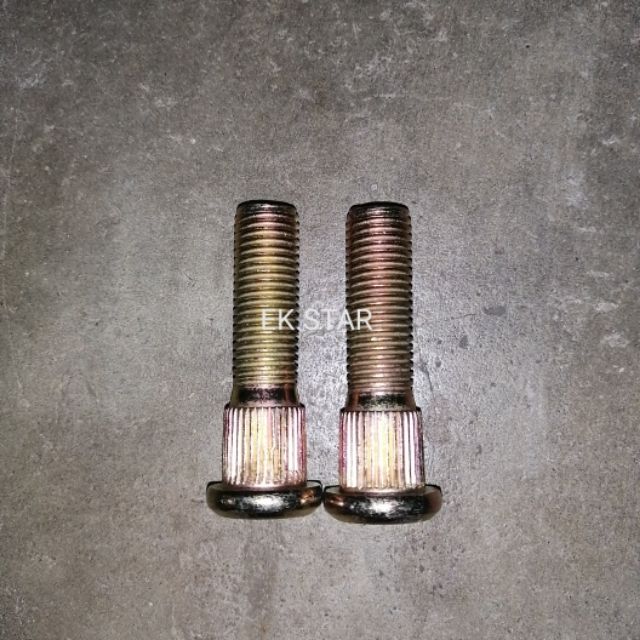

Wheel Bolt And Nut Skru Nat Tayar For Proton Saga Wira Putra Perdana Waja Neo Gen 2 Persona Blm Proton Perodua Parts Online Store For Proton And Perodua Car Spare Parts

Kedai tayar kereta kuala terengganu kedai tayar melaka kedai tayar melayu ipoh kedai tayar kereta murah ipoh kedai tayar klang murah kedai tayar kuantan.

Bolt joint tayar. This preload ensures that the clamped parts remain in contact. Properly designed bolted joint is extremely important for striking the balance between the cost and life of the joint. The bolted joint works by inducing an initial clamping force preload on the joint by threading the fastener into either a nut or into threads that have been tapped into one of the parts.

Many joints are subjected to shear loads at right angles to the axis of the bolt. Join our forum today and benefit from over 300000 posts on tuning styling and friendly car banter. The shear area of the external thread bolt The shear area of the internal thread hole Tensile stress area of the external thread bolt For steels of up to 100000 psi ultimate tensile strength the tensile stress area of the bolt thread At is where D basic major diameter of the thread in n number of threads per inch.

Various analysis programe have studied it. The Bolted Joint Analysis calculator allows for stress analysis of a bolted joint accounting for preload applied axial load and applied shear load. A bolt goes in to a state of tension when torque is applied.

The bolt must have adequate strength. Diameter or size of the bolt or screw. As a result the fasteners fatigue life is increased or if the material exhibits an endurance limit its life extends indefinitely.

As long as the external tension loads on a joint do not exceed the clamp load the fastener is. Consider a bracket taking an offset load F N at a radius R m. The joint must demonstrate a separation factor of safety at limit load.

The combination of the bolt and nut is known as a bolted joint. The behavior and life of the joint depends on how tightly the bolts clamp and how long they can maintain their preload. Thus for an equal change in deformation the change of the load in the bolt must be only 13 to 15 of the change in the load of the joint.

The bolt must have adequate fracture and fatigue life. Many such joints rely for their strength on the friction forces developed between joint members forces created by the clamping force exerted by the bolt on the joint. The bolt is placed through a pre-cut hole in the objects after which a nut is twisted and secured onto the mating thread at the end of the bolt.

Advantages of Bolted Joints Bolted joints offer several advantages one of which is high tensile strength. Global Mozon Industrial Services offers expertise in bolted joint integrity services to maintain the safety and efficiency of your machinery. For cyclic tension loads the fastener is not subjected to the full amplitude of the load.

All Bolt rides in Europe are 100 carbon-neutral. The bolts in a tension joint must act like clamps. Easy to remove and re-assemble Strong Long lasting Reusable More resistant to corrosion Safety There are over 4000 fasteners used to put together an automobile Taurus Escort.

However developing an accurate model of a bolted joint can take a lot of time and effort. It is also called grip length as the total thickness of clamped parts under compression. Strength of bolts withstanding torsion generated shear loading.

As a design engineer for a good bolted joint design for a given loading conditions and materials of the abutments you have to basically select the following design parameters. In addition the Research Council has approved and published A Test Method to Determine the Slip Coefficient for Coatings used in Bolted Joints This second updated edition has been prepared and. Computer based techniques such as the finite element method FEM can determine the stresses in almost any part of a structure.

Relaxation of 10 to 20 of the initial preload is not uncommon. This generally means the joint must not separate at the maximum load to be applied to the joint. The tightening of the bolt and nut produces a tensile pre-stress which is approximately equal to the compressive stress introduced in the joint material.

Design properties for metric hex bolts Typical coarse pitch thread Dimensions Hole diameter d 0 mm Areas Tensile resistance F tRd kN Shear resistance per shear plane F vRd kN Bearing resistance per mm of connected plate thickness F vRd t kNmm for e 1 3d 0 e 2 15d 0 p 1 375d 0 p 2 3d 0 Punching resistance per mm of plate thickness under bolt or. A bolted joint in a bolt takes significant amount of tensile and shear loading proper analysis or calculation must be done to withstand combined stress. Many of these fasteners are also holding the safety components of the vehicle.

Bolt and Joint Failure A great deal of sophistication can be applied to the analysis of structures. Cungkil bawah knuckle yang untuk menanggalkan ball joint dari knuckle. To optimise a bolted joint it is recommended to design the clamped length to at least 3 or 5 times the bolt diameter.

Our highly trained and professional crews use innovative products and multi-skilled teams to ensure that all bolting operations whether torque or tension building comply with industry best practices. The tightening of the bolt and nut produces a tensile pre-stress which is approximately equal to the compressive stress introduced in the joint material. Joint slip.

In a blind hole B or for a stud bolt C the distance between the head nut and the first thread engaged in the tapped hole. Buka 2 biji nat pada absorber. See the instructions within the documentation for more details on performing this analysis.

See the reference section for details on the methodology and the equations used. However for bolted joints analysis this poses many problems due to the large number of delamination interfaces in thick laminates coupled with the fact that delamination normally occurs at the bolt-hole where significant contact mechanics are also at play. Again therefore it is preload that determines joint integrity.

The bracket is secure using a number of bolts each with a Area Am 2. A fully tightened bolted joint can sustain millions of load cycles without problems a joint consisting of untightened bolts will frequently fail within a few cycles. 1 It is also important that in a structural joint bolt preload or torque applied to secure the component be properly determined.

Pastu buka pula balljoint bolt pada bahagian bawah knuckle di hujung lower arm 3. The reason for this is the way a bolted joint carries an external load - a fully tightened bolt sustains only a small proportion of any externally applied load. The most common kinds are threaded fasteners bolts and screws and riveted joints.

This makes modeling very challenging since newly formed delamination surfaces can potentially become. Pastu buka pin nut tie rod end 4. The bolts in a tension joint must act like clamps.

A preloaded joint must meet as a minimum the following three basic requirements. Welded joints and their applications in space structures specifically pressurized tanks were discussed in chapter 6. Joints almost always relax after they have first been tightened.

Is there anyone else out there using the single-bolt neck joint that Taylor uses on their electrics. The bolts are located around a centroid position each with a radius from the centroid of r n m and. The problem is due to the bolts preload compressing the clamped.

Cabut pin nut driveshaft pastu buka nut driveshaft. Tarik knuckle supaya driveshaft terpisah dari lubang 5. The stresses are adjusted based on the number of bolts screws used for the joint.

The Flash Bundle bolts into the Fortnite Item Shop on Feb. Proper joint design and bolt preload provides useful properties. Bolts are preferred fasteners for the following reasons.

These joints are primarily used to provide continuity of structure and transfer of internal load from one member to another. New specifications for structural joints using ASTM A325 or A490 bolts one based on allowable stress principles and the other on a load factor and resistance design philosophy.
